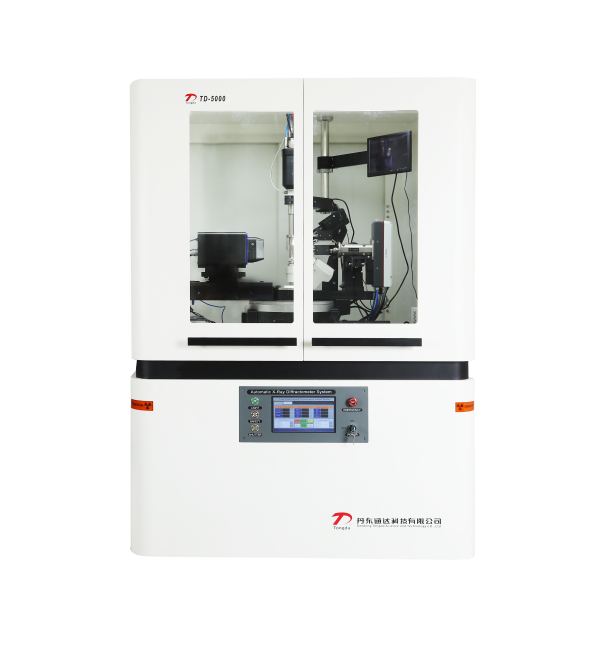

TD-5000 Einkristall-XRD

1.Die Einkristallmaschine übernimmt die SPS-Steuerungstechnologie.
2.Modularer Aufbau, Zubehör Plug-and-Play.
3.Elektronische Bleitürverriegelung mit doppeltem Schutz.
4. Einkristall-Röntgenröhre: Es können verschiedene Ziele ausgewählt werden, z. B. Cu, Mo usw.
5. Einkristall verwendet die konzentrische Vier-Kreis-Technologie, um sicherzustellen, dass die Mitte keines Goniometers unverändert bleibt.

  • Tongda
  • Liaoning, China
  • 1–2 Monate
  • 100 Einheiten pro Jahr
  • Information

TD-5000 X-ray single crystal diffractometer(single crystal xrd)

Hybrid pixel detector is a revolutionary development in the field of X-ray detectors that enables better date quality while ensuring low power consumption and cooling. The detector combines the key technology single photo counting and hybrid pixel for applications in various fields such as synchrotron radiation and conventional laboratory light sources to eliminate the interference of readout noise and dark current. Hybrid image cable technology can directly detect X-ray signals that are more distinguishable. And the detector is highly efficient at delivering high quality data from your more challenging samples.


TD-5000 X-ray single crystal diffractometer product introducteion


Domestic exclusive- to fill the domestic gap

x-ray single crystal diffractometerSingle Crystal XRD


Piltus Mixed Pixel Detector

TD-5000 X-ray single crystal diffractometer(single crystal xrd) is mainly used to measure the three-dimensional spatial structure and electron cloud density of inorganic and organic materials. The hybrid pixel detector provides the best data quality while ensuring low powerconsumption and low cooling. The detector combines the two key technologies of single photoncounting and mixed pixels, it is used in various fields such as synchrotron radiation and conventioral laboratory light source, effectively eliminate the interference of reading noise and dark current,hybrid pixel technology can detect X-rays directly, easier to resolve the signal, and the detector can efficiently provide high quality data.single crystal

Cryogenig Equipment:

The data collected through the cryogenic equipment has more ideal results, and under the actionof the cryogenic equipment, more advantageous conditions can be improved, which may make theimperfect crystal obtain ideal results. The ideal crystal can also obtain more ideal results.


Temperature control range: 100K~300K

Liquid nitrogen consumption: 1.1-2L/H

Control accuracy: 土0.3K

Single Crystal XRD

Instrument accuracy:

2θangle repetition accuracy:0.0001°

Minimum index angle:0.0001°

Temperature control rang:100K—300K

Control accuracy:±0.3K



TD-5000 X-ray single crystal diffractometer(single crystal XRD) adopts the four-circle concentric technology to ensure that the center of the goniometer remains unchanged no matter how the rotation occurs. To achieve the purpose obtaining the most accurate date and obtaining a higher integrity rate, and the four concentric circles are necessary conditions for routine single scanning. And it carries a detector that makes higher data quality and faster scanning.

x-ray single crystal diffractometer


Detector Features:

Sensitive area [mm2]:83.8 × 70.0

Pixel size [µm2]:172 × 172

Pixel spacing:< 0.03%

Max collar rate[Hz]:20

Read out time [ms]:7

Energy range [keV]:3.5 - 18


Test results:

single crystal


Optional attachments

Multilayer film focusing lens:

X-ray tube rate:30W or 50WDivergence0.5~1 mrad

X-ray tube target:Mo / Cu spotFocal spot0.5~2 mm


Sales performance:

The technical personnel of the company have completed the installation and debugging of the foreign single crystal X-ray diffractometer, and the test results are very satisfactory to the foreign users. Function, stability and after-sales service by foreign users of the unanimous praise.
